The following figures illustrate the flow of information and configuration required for VPIM messages to be sent and received.

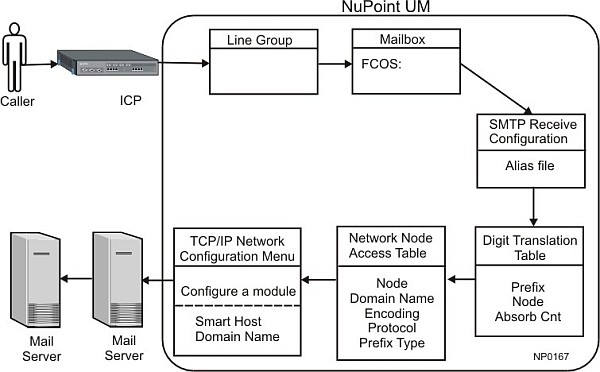

Sending a VPIM message from a Mailbox
The diagram below shows the configuration menus in NuPoint UM that must be set up for NuPoint UM to send VPIM messages.

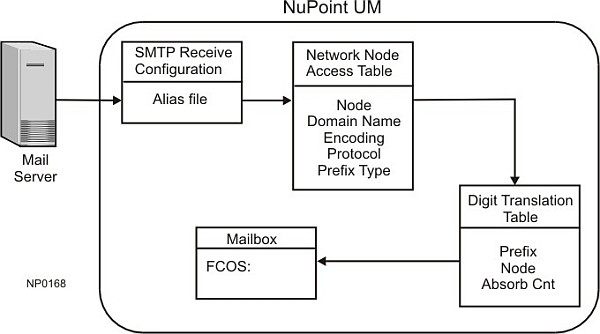

Receiving a VPIM message and saving it to a Mailbox
The diagram below shows the configuration menus on NuPoint UM that must be set up for NuPoint UM to receive VPIM messages.
