Creating a SIP NODE
Configuration > Private networking > SIP networking
Click New and apply the following values to the following fields:
| Route only calls to private destinations to the new SIP node | Selected |
| SIP remote node name | The name of your MiContact Center Enterprise Server |
| IP address / host name | The IP address of your MiContact Center Enterprise Server |
| Port | 5060 |

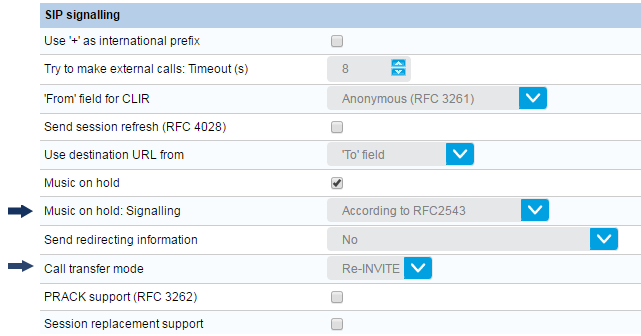

Click on the SIP Trunk name and apply the following values to the following fields:
| Music on hold: Signalling | According to RFC2543 |
| Call transfer mode | Re-INVITE |
↑
