Import a flow

This topic provides the instructions for importing a workflow. The definition is supported in JSON format.

1. On the Workflow Studio home page, click Flows.

   The Flows page is displayed.

2. On the Flows page, click Import flow.
   The Import Flow popup screen is displayed.

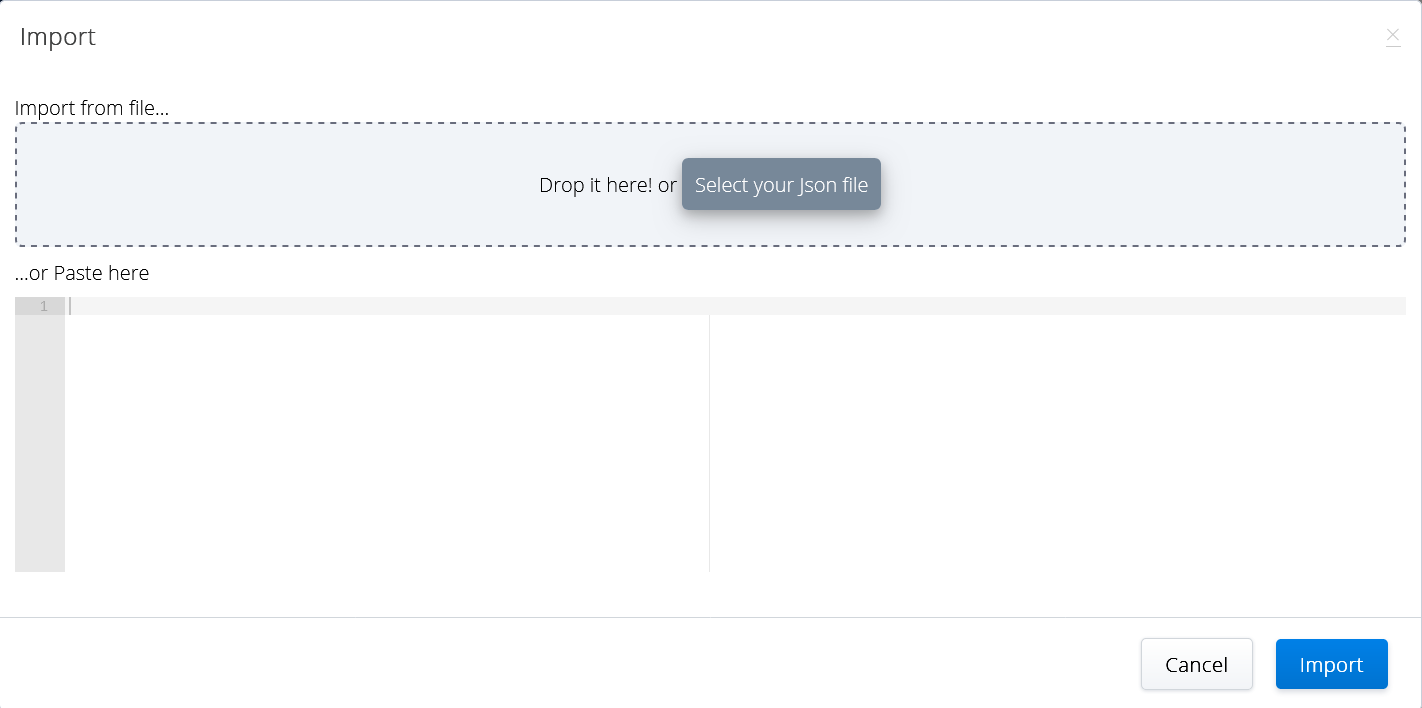

   Figure 1. Import Flow






3. In the Import tab, perform one of the following actions to import the definition of the flow:
   1. Drag and drop the JSON file containing the flow definition in the Import from file field.
   2. Click Select your json file to select the JSON file from your local folder.
   3. Copy and paste the flow definition under the Paste here section.
4. Click Import.

   The selected workflow is imported to the Workflow Canvas.
